Fixed #675: New chart: Average monthly income/expenditure sum per category

src/main/java/de/deadlocker8/budgetmaster/charts/DefaultCharts.java

@@ -62,6 +62,10 @@ public class DefaultCharts
 			getChartFromFile("charts/AverageMonthlyIncomesAndExpendituresPerYearBar.js"),
 			ChartType.DEFAULT, 9, ChartDisplayType.BAR, ChartGroupType.YEAR, "averageMonthlyIncomesAndExpendituresPerYearBar.png");

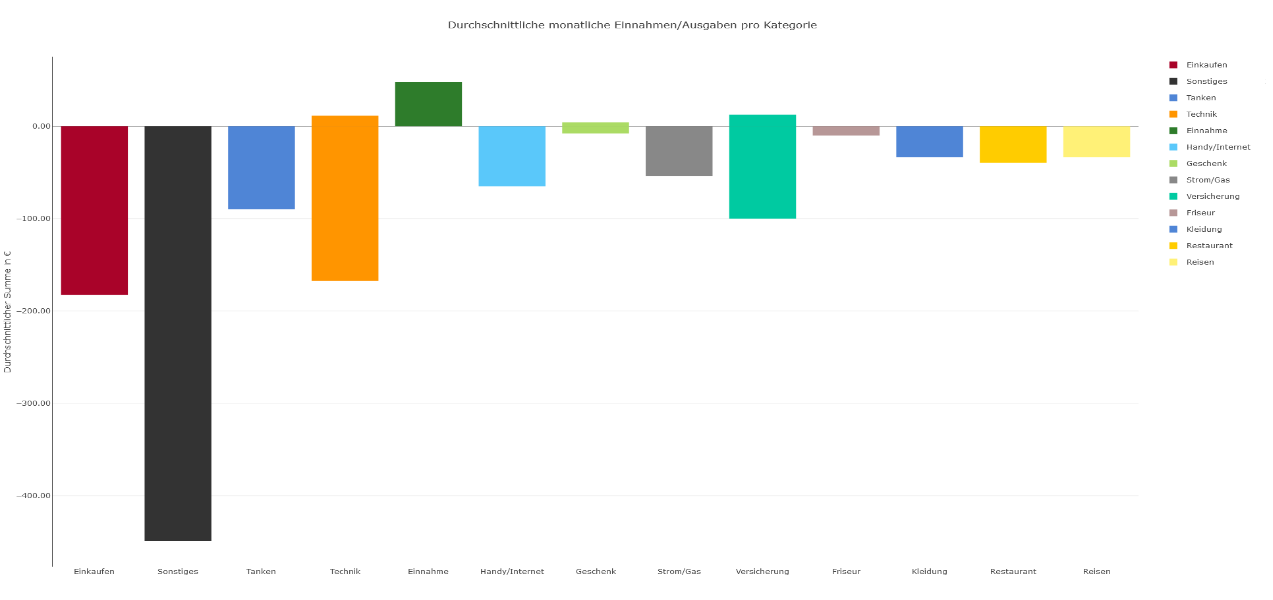

+	private static final Chart CHART_AVERAGE_MONTHLY_INCOMES_AND_EXPENDITURES_PER_CATEGORY_BAR = new Chart("charts.default.averageMonthlyIncomesAndExpendituresPerCategoryBar",
+			getChartFromFile("charts/AverageMonthlyIncomesAndExpendituresPerCategoryBar.js"),
+			ChartType.DEFAULT, 1, ChartDisplayType.BAR, ChartGroupType.NONE, "averageMonthlyIncomesAndExpendituresPerCategoryBar.png");
+
 	private DefaultCharts()
 	{
 	}
@@ -80,6 +84,7 @@ public class DefaultCharts
 		charts.add(CHART_INCOMES_AND_EXPENDITURES_PER_YEAR_BY_CATEGORIES);
 		charts.add(CHART_AVERAGE_TRANSACTION_AMOUNT_PER_CATEGORY);
 		charts.add(CHART_AVERAGE_MONTHLY_INCOMES_AND_EXPENDITURES_PER_YEAR_BAR);
+		charts.add(CHART_AVERAGE_MONTHLY_INCOMES_AND_EXPENDITURES_PER_CATEGORY_BAR);
 		return charts;
 	}


src/main/resources/charts/AverageMonthlyIncomesAndExpendituresPerCategoryBar.js

+/* This list will be dynamically filled with all the transactions between
+ * the start and and date you select on the "Show Chart" page
+ * and filtered according to your specified filter.
+ * An example entry for this list and tutorial about how to create custom charts ca be found in the BudgetMaster wiki:
+ * https://github.com/deadlocker8/BudgetMaster/wiki/How-to-create-custom-charts
+ */
+var transactionData = [];
+
+// Note: All variables starting with "localized" are only available inside default charts.
+moment.locale(localizedLocale);
+
+var months = [];
+var categoryNames = [];
+var colors = [];
+var incomesPerCategory = [];
+var expendituresPerCategory = [];
+
+for(var i = 0; i < transactionData.length; i++)
+{
+    var transaction = transactionData[i];
+
+    var month = moment(transaction.date).startOf('month').format('MMM YY');
+    if(!months.includes(month))
+    {
+        months.push(month);
+    }
+
+    var categoryName = transaction.category.name;
+    // create new category if not already in dict
+    if(!categoryNames.includes(categoryName))
+    {
+        categoryNames.push(categoryName);
+        colors.push(transaction.category.color);
+        incomesPerCategory.push([]);
+        expendituresPerCategory.push([]);
+    }
+
+    // determine index of categoryName in list because the transactions are not ordered by category and some categories
+    // will be missing either for income or expenditures
+    var index = categoryNames.indexOf(categoryName);
+
+    // add to income or expenditure sum
+    var amount = transaction.amount;
+    if(amount > 0)
+    {
+        incomesPerCategory[index].push(amount);
+        expendituresPerCategory[index].push(0);
+    }
+    else
+    {
+        incomesPerCategory[index].push(0);
+        expendituresPerCategory[index].push(amount);
+    }
+}
+
+
+// Prepare your chart settings here (mandatory)
+var plotlyData = [];
+
+for(var j = 0; j < categoryNames.length; j++)
+{
+    var currentName = categoryNames[j];
+
+    var incomeAverage = calculateAverage(incomesPerCategory[j], months.length);
+    var expenditureAverage = calculateAverage(expendituresPerCategory[j], months.length);
+
+    addDPlotlyData(plotlyData, incomeAverage, currentName, colors[j]);
+    addDPlotlyData(plotlyData, expenditureAverage, currentName, colors[j], false);
+}
+
+
+// Add your Plotly layout settings here (optional)
+var plotlyLayout = {
+    title: {
+        text: localizedTitle
+    },
+    xaxis: {
+    },
+    yaxis: {
+        title: localizedData['label1'] + ' ' + localizedCurrency,
+        rangemode: 'tozero',
+        tickformat: '.2f',
+        showline: true
+    },
+    barmode: 'relative',
+    hovermode: 'closest' // show hover popup only for hovered item
+};
+
+// Add your Plotly configuration settings here (optional)
+var plotlyConfig = {
+    showSendToCloud: false,
+    displaylogo: false,
+    showLink: false,
+    responsive: true,
+    displayModeBar: true,
+    toImageButtonOptions: {
+        format: 'png',
+        filename: 'BudgetMaster_chart_export',
+        height: 1080,
+        width: 1920,
+    }
+};
+
+// Don't touch this line
+Plotly.newPlot("containerID", plotlyData, plotlyLayout, plotlyConfig);
+
+
+function addDPlotlyData(plotlyData, averageValue, categoryName, color, showLegend)
+{
+    // add border if category color is white
+    var borderWidth = 0;
+    if(color.toUpperCase().startsWith('#FFFFFF'))
+    {
+        borderWidth = 1;
+    }
+
+    plotlyData.push({
+        y: [averageValue],
+        x: [categoryName],
+        orientation: 'v',
+        type: 'bar',
+        hoverinfo: 'text',
+        hovertext: [prepareHoverText(categoryName, averageValue)],
+        name: categoryName,
+        legendgroup: categoryName,
+        showlegend: showLegend,
+        marker: {
+            color: color,  // use the category's color
+            line: {
+                color: '#212121',
+                width: borderWidth
+            }
+        }
+    });
+}
+
+function calculateAverage(values, numberOfMonths)
+{
+    var sum = 0;
+    values.forEach(function(value)
+    {
+        sum += value;
+    });
+    return (sum / numberOfMonths) / 100;
+}
+
+function prepareHoverText(categoryName, value)
+{
+    return categoryName + ' ' + value.toFixed(1) + ' ' + localizedCurrency;
+}
\ No newline at end of file

src/main/resources/charts/AverageTransactionAmountPerCategoryBar.js

@@ -140,45 +140,3 @@ function prepareHoverText(categoryName, value)
 {
     return categoryName + ' ' + value.toFixed(1) + ' ' + localizedCurrency;
 }
-
-
-// Add your Plotly layout settings here (optional)
-var plotlyLayout = {
-    title: {
-        text: localizedTitle
-    },
-    xaxis: {
-    },
-    yaxis: {
-        title: localizedData['label1'] + ' ' + localizedCurrency,
-        rangemode: 'tozero',
-        tickformat: '.2f',
-        showline: true
-    },
-    barmode: 'stack',
-    hovermode: 'closest' // show hover popup only for hovered item
-};
-
-// Add your Plotly configuration settings here (optional)
-var plotlyConfig = {
-    showSendToCloud: false,
-    displaylogo: false,
-    showLink: false,
-    responsive: true,
-    displayModeBar: true,
-    toImageButtonOptions: {
-        format: 'png',
-        filename: 'BudgetMaster_chart_export',
-        height: 1080,
-        width: 1920,
-    }
-};
-
-// Don't touch this line
-Plotly.newPlot("containerID", plotlyData, plotlyLayout, plotlyConfig);
-
-
-function prepareHoverText(categoryName, value)
-{
-    return categoryName + ' ' + value.toFixed(1) + ' ' + localizedCurrency;
-}
\ No newline at end of file

src/main/resources/languages/base_de.properties

@@ -560,6 +560,8 @@ charts.default.averageTransactionAmountPerCategory=Durchschnittlicher Transaktio
 charts.default.averageTransactionAmountPerCategory.localization='{"label1": "Durchschnittlicher Transaktionsbetrag in"'}
 charts.default.averageMonthlyIncomesAndExpendituresPerYearBar=Durchschnittliche monatliche Einnahmen/Ausgaben
 charts.default.averageMonthlyIncomesAndExpendituresPerYearBar.localization='{"traceName1": "Einnahmen", "traceName2": "Ausgaben"', "axisY": "Durchschnittlicher monatlicher Betrag in"'}
+charts.default.averageMonthlyIncomesAndExpendituresPerCategoryBar=Durchschnittliche monatliche Einnahmen/Ausgaben pro Kategorie
+charts.default.averageMonthlyIncomesAndExpendituresPerCategoryBar.localization='{"label1": "Durchschnittlicher Summe in"'}

 charts.custom=Eigene Diagramme
 charts.default=Standarddiagramme

src/main/resources/languages/base_en.properties

@@ -560,6 +560,8 @@ charts.default.averageTransactionAmountPerCategory=Average transaction amount pe
 charts.default.averageTransactionAmountPerCategory.localization='{"label1": "Average transaction amount in"'}
 charts.default.averageMonthlyIncomesAndExpendituresPerYearBar=Average monthly incomes/expenditures
 charts.default.averageMonthlyIncomesAndExpendituresPerYearBar.localization='{"traceName1": "Incomes", "traceName2": "Expenditures"', "axisY": "Average monthly amount in"'}
+charts.default.averageMonthlyIncomesAndExpendituresPerCategoryBar=Average monthly incomes/expenditures per category
+charts.default.averageMonthlyIncomesAndExpendituresPerCategoryBar.localization='{"label1": "Average sum in"'}

 charts.custom=Custom Charts
 charts.default=Default Charts
